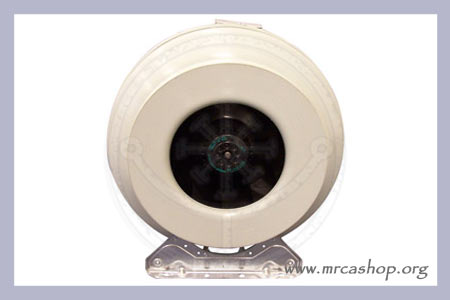

The RVK series is designed for installation in ducts.The fans have backward-curved blades and external rotor motors.

• Speed-controllable
• Integral thermal contacts
• Can be installed in any position
• Inclusive mounting bracket
• Maintenance-free and reliable

Technical parameters:
Voltage: 230 V
Frequency: 50 Hz
Phase: 1 ~
Power: 217 W
Current: 0,95 A
Max. airflow: 1 210 m³/h

The FK mounting clamp facilitates easy installation and removal, and prevents the transfer of vibration to the duct. The fans can be speed-controlled via a stepless thyristor or a 5-step transformer.

The RVK fans have integral thermal contacts with automatic reset. The casing is manufactured from fibreglass reinforced plastic.

For more information and technical parameters, please klick here!
